Products Category
Y19AS Series KNX Switch
Y19AS Series KNX Switch
The KNX panel has switch, dimming, casement curtain, roller blind, scene, value and other parameter functions; LED status light can be configured with on, off, on/off, feedback according to value and other functions.

Series: Y19AS
Power: 24V DC
Switch Material: Full Metal
Button Type: 1/2/3/4 Gang Switch
Dimension: 90×90mm
Installation Method: UK Square Wall Box
Color: Frosted Black / Frosted Grey / Frosted Champagne / Frosted Silver
Y19AS Knob Thermostat
Y19AS Knob Thermostat
The KNX Knob Thermostat can control air conditioning, floor heating and fresh air.

Series: Y19AS
Power: 24V DC
Material: Full Metal
Button Type: Push Button with Knob
Dimension: 90mm×90mm
Installation Method: UK Square Wall Box
Color: Frosted Black / Frosted Grey / Frosted Champagne / Frosted Silver

Z-RD4 / Z-ERD4 Series KNX Switch
Z-RD4 / Z-ERD4 Series KNX Switch
The KNX panel has switch, dimming, casement curtain, roller blind, scene, value and other parameter functions; LED status light can be configured with on, off, on/off, feedback according to value and other functions.

Series: Z-RD4 / Z-ERD4
Power: 24V DC
Switch Material: Full Metal or Metal Frame with Plastic Button
Button Type: 2 / 3 / 4 Gang One Line; 4 / 6 / 8 Gang Two Line
Dimension: 86×86mm
Installation Method: UK Square (Z-RD4) / EU Round (Z-ERD4) Wall Box
Color: Spray White / Spray Black / Spray Grey / Spray Champagne / Brushed Black / Brushed Grey / Brushed Champagne
Z-WK6 KNX Smart Thermostat
Z-WK6 KNX Smart Thermostat
Z-WK6 KNX Screen Touch Thermostat can control air conditioning, floor heating and fresh air.

Series: Z-WK6
Power: 24V DC
Material: Acrylic
Button Type: Touch Panel
Dimension: 86×86mm
Installation Method: UK Square Wall Box
Color: Spray White / Spray Black / Spray Grey / Spray Champagne
Brushed Balck / Brushed Grey / Brushed Champagne

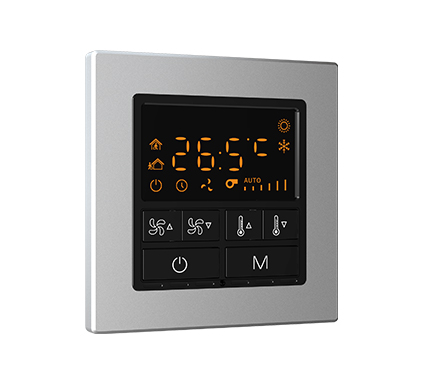

Z-WK7 KNX Smart Thermostat
Z-WK7 KNX Smart Thermostat
Z-WK7 KNX Push Button Thermostat can control air conditioning, floor heating and fresh air.

Series: Z-WK7
Power: 24V DC
Material: Metal Frame with Plastic Button
Dimension: 86×86mm
Installation Method: EU Wall Box
Color: Spray White / Spray Black / Spray Grey / Spray Champagne
Brushed Balck / Brushed Grey / Brushed Champagne

D89 Series KNX Switch
D89 Series KNX Switch
The KNX panel has switch, dimming, casement curtain, roller blind, scene, value and other parameter functions; LED status light can be configured with on, off, on/off, feedback according to value and other functions.

Series: D89
Power: 24V DC
Switch Material: Full Metal
Button Type: 3 / 4 Gang Switch
Dimension: 86×86mm
Installation Method: EU Round Wall Box
Color: Spray White / Spray Black / Spray Grey / Spray Champagne

D8 Full Screen Touch Thermostat
D8 Full Screen Touch Thermostat
The KNX Full Screen Touch Thermostat can control air conditioning, floor heating and fresh air.

Series: D8
Power: 24V DC
Material: Acrylic
Button Type: Touch Panel
Dimension: 86×86mm
Installation Method: UK Square / EU Round Wall Box
Color: Black

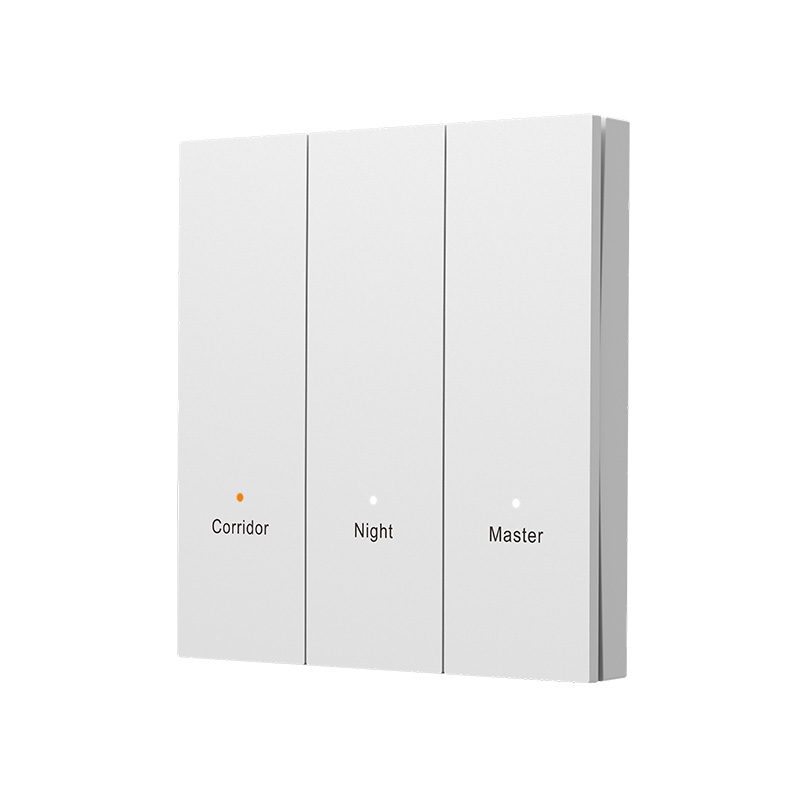

D8 / ED8K Series KNX Switch
D8 / ED8K Series KNX Switch
The KNX panel has switch, dimming, casement curtain, roller blind, scene, value and other parameter functions; LED status light can be configured with on, off, on/off, feedback according to value and other functions.

Series: D8 (UK) / ED8K (EU)
Power: 24V DC
Switch Material: Full Plastic
Button Type: 1/2/3 Gang Switch; 2 Key 4 Gang Switch; 3 Key 6 Gang Switch
Dimension: 86×86mm
Installation Method: UK Square / EU Round Wall Box
Color: White / Black / Grey / Champagne

KNX LCD Touch Screen Panel
KNX LCD Touch Screen Panel
KNX LCD multi-function touch panel with exquisite aluminum alloy frame could arbitrarily defined lighting, curtains, dimming, RGB dimming, AC, floor heating, fresh air, HAVC, background music, power query, air quality control, timing management, scenes management etc.

Model: TS0401
Bus Voltage: 21-30V DC
Auxiliary Power Supply Voltage: 24 V DC
Bus Current: < 12 mA
Auxiliary Current: < 60mA
Bus Power: < 360mW
Dimension (H x W x D): 86X86X29 mm
