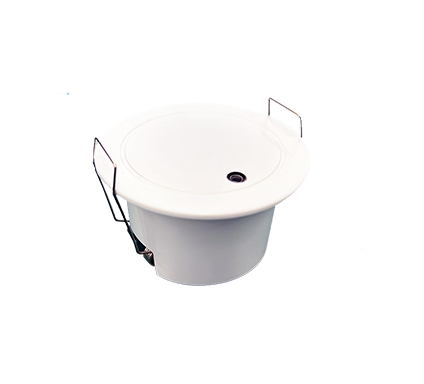

KNX Indoor Microwave Sensor
Model: SNR0502
Bus voltage: 21-30VDC, KNX bus power
Auxiliary voltage: 24V
Bus current: ≤ 3mA
Bus power: ≤ 90mW
Auxiliary current: <33mA
Auxiliary power: <792mW
Opening diameter: Φ53mm≤d≤55mm
Shell material: ABS
Sensing angle: 90°
Sensing distance: Installation height 2.5m~3m, radiation range within 5m
Dimensions (H x D): Height H=40mm Diameter=67mm
Installation method: Ceiling embedded installation
