KNX Smart Devices

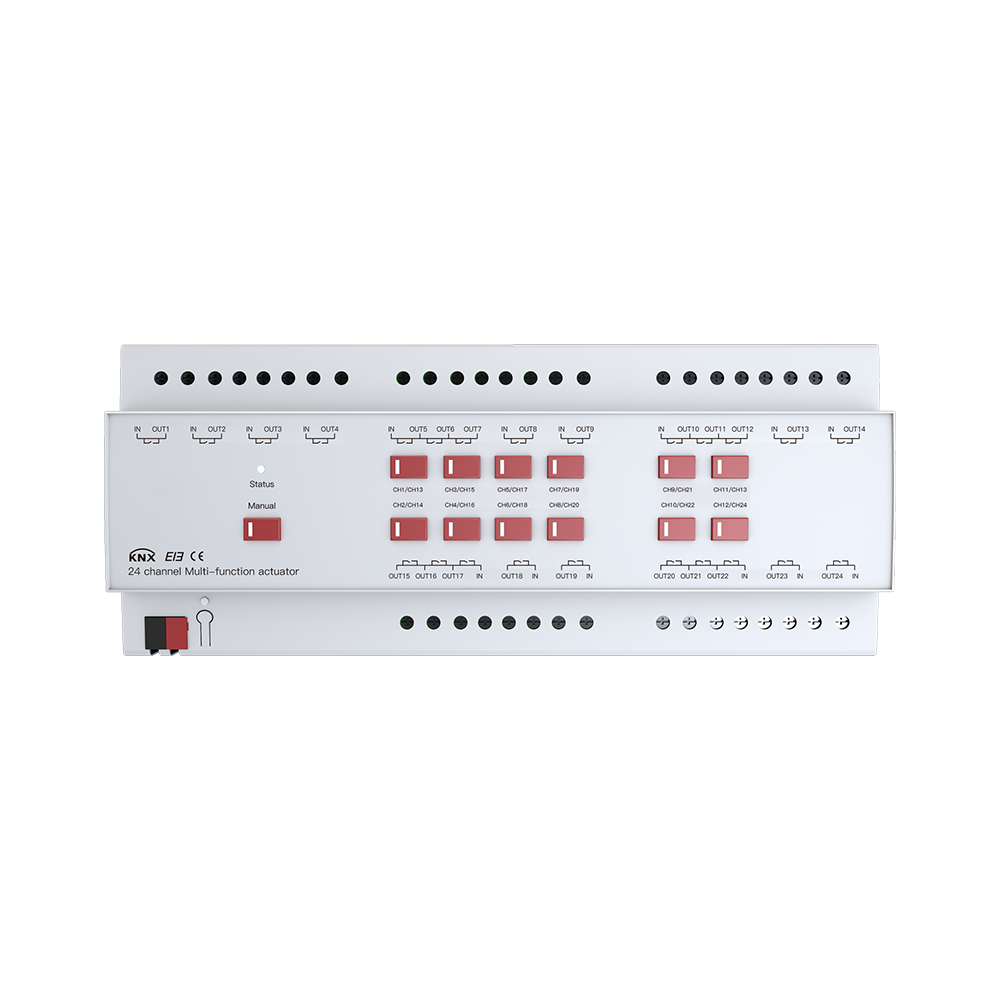

KNX 10A Multifunction Actuator

KNX 10A Multifunction Actuator

Main Input: 4/6/8/12/16/24 circuits, each circuit 250V AC（50/60Hz)
Model: MX0410; MX0610; MX0810; MX1210; MX1610; MX2410
KNX Bus Voltage: 21-30VDC; KNX Bus Current: ≤20mA
Bus Power: ≤ 360mW; Shell Material: PA66
Size (mm): 72mm x 90mm x 64mm 4 Circuits (MX0410)
145mm x 90mm x 64mm 6/8/12 Circuits (MX0610/MX0810/MX1210)
218mm x 90mm x 64mm 16/24 Circuits (MX1610/MX2410)

KNX 20A Switch Actuator

KNX 20A Switch Actuator

Main Input: 4/6/8/12 circuits, each circuit 250V AC（50/60Hz) 20A
Model: MR0420; MR0620; MR0820; MR1220
KNX Bus Voltage: 21-30VDC ; KNX Bus Current: ≤20mA
Bus Power: ≤ 360mW ; Shell Material: PA66
Size (mm): 72mm x 90mm x 64mm 4 Circuits (MR0420)
145mm x 90mm x 64mm 6/8 Circuits (MR0610/MR0810)
218mm x 90mm x 64mm 12 Circuits (MR1220)

KNX 16A Switch Actuator

KNX 16A Switch Actuator

Main Input: 4/8/12 circuits, each circuit 250V AC（50/60Hz) 16A
Model: MI0416; MI0816; MI1216
KNX Bus Voltage: 21-30VDC ; KNX Bus Current: ≤20mA
Bus Power: ≤ 360mW ; Shell Material: PA66
Size (mm): 72mm x 90mm x 64mm 4 Circuits (MI0416)
145mm x 90mm x 64mm 6 Circuits (MI0816)
218mm x 90mm x 64mm 12 Circuits (MI1216)

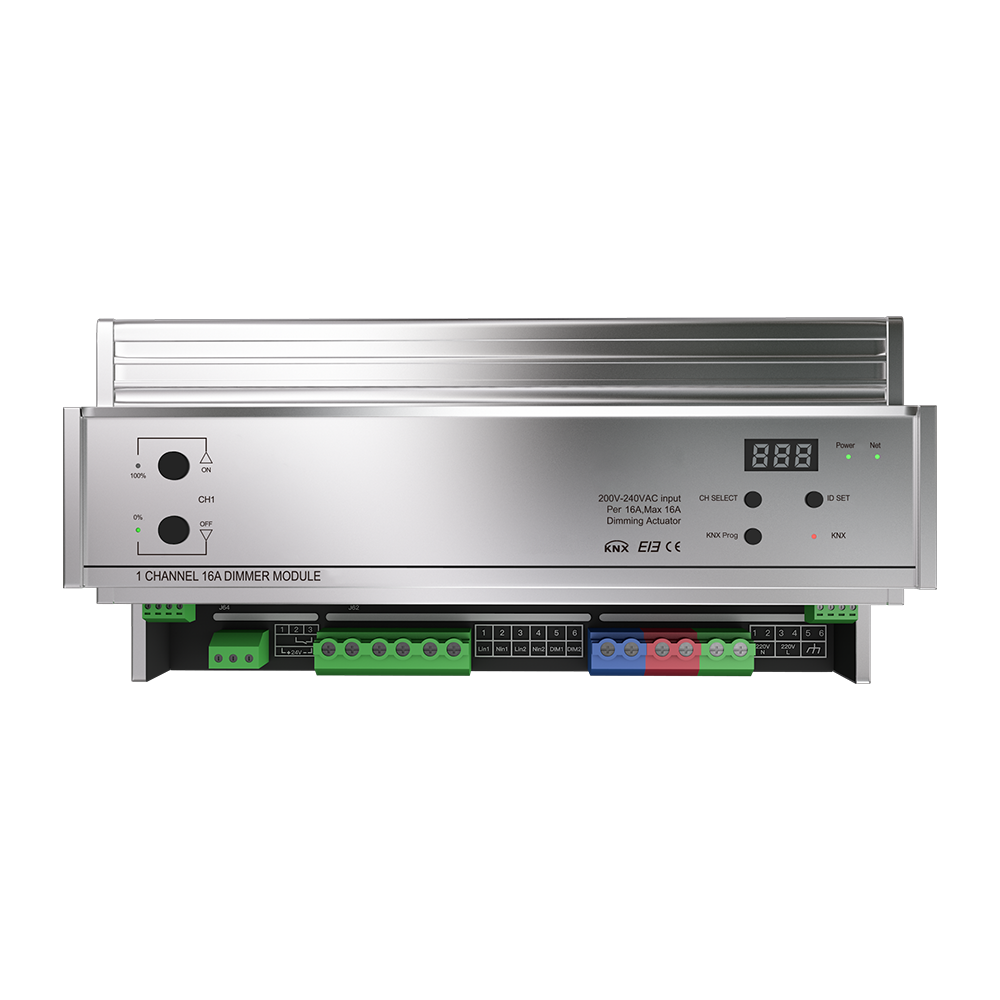

KNX Silicon Controlled Dimming Actuator

KNX Silicon Controlled Dimming Actuator

Model: MD040502 (5A); MD021002 (10A); MD011602 (16A)
Main Input: 200~240V AC
Main output: 4/2/1 independent circuit SCR dimming output
KNX Bus Input: 21-30VDC
KNX Bus Current: ≤12mA; Bus Power: ≤ 2.7W
Shell Material: PA66
Size (mm): 220mm x 102mm x 68mm

KNX Curtain Actuator

KNX Curtain Actuator

Model: MC0406
Main Input: 200~240V
KNX Bus Input: 21-30VDC
KNX Bus Current: ≤10mA
Bus Power: ≤ 2.3W
Shell Material: PA66
Size (mm): 145mm x 90mm x 64mm

KNX 0-10 V Dimming Actuator

KNX 0-10 V Dimming Actuator

Model: MD041601; MD061601
Main Input: 200~240V AC; Main Output: 0-10V
0-10V Output: Output of each circuit≤ 40mA
KNX Bus Input: 21-30VDC
KNX Bus Current: ≤12mA; Bus Power: ≤ 2.7W
Shell Material: PA66
Size (mm): 145mm x 90mm x 64mm 4/6 Circuits

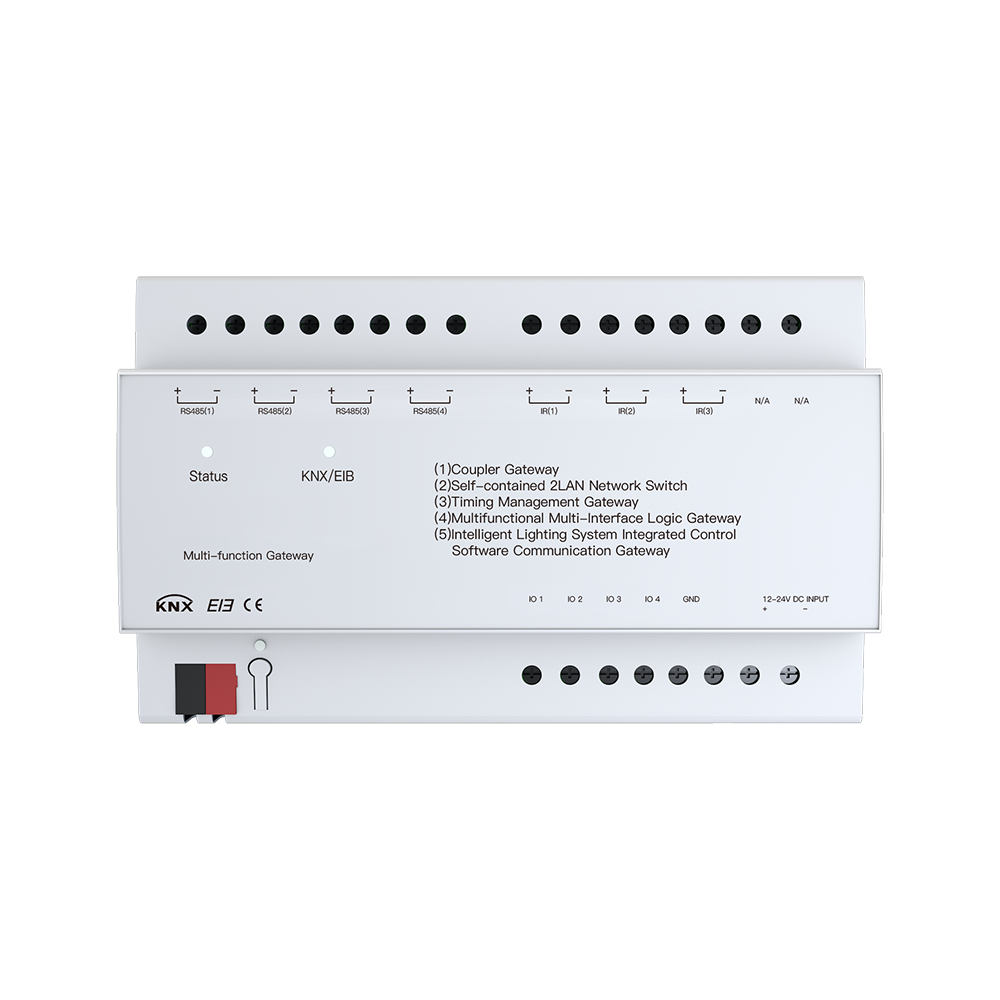

KNX Multi Protocol Control Gateway

KNX Multi Protocol Control Gateway

Model: MG0201
Main Input: 12~24 VDC
KNX Bus Input: 21-30VDC
KNX Bus Current: ≤10mA
Bus Power: ≤ 2.3W
Shell Material: PA66
Size (mm): 145mm x 90mm x 64mm

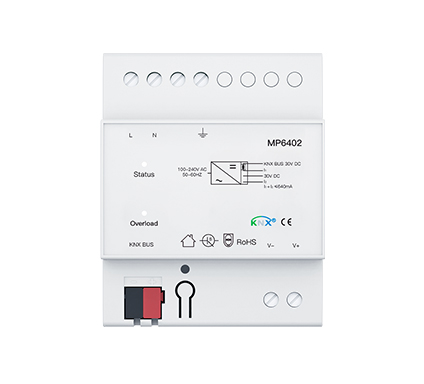

KNX BUS Auxiliary Power Supply

KNX BUS Auxiliary Power Supply

Model: MP6402
Main Input: 100-240VAC; 50/60Hz
KNX Bus Output: 1 circuit with reactor, 21-30VDC
Auxiliary Power Output: 1 without reactor, 30VDC
Nominal Output Current: I₁+I₂≤640mA, short circuit protection
Shell Material: PC
Size (mm): 72mm*90mm*64mm

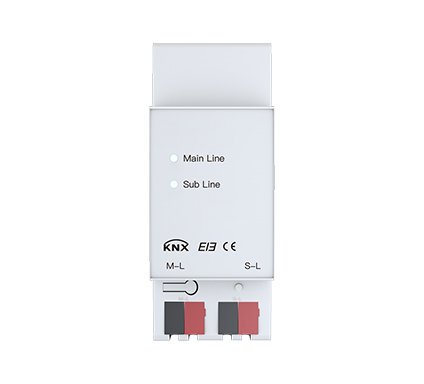

KNX Line Coupler

KNX Line Coupler

Model: MG0601
KNX Bus Input: 21-30VDC
KNX Bus Current: ≤12mA
Bus Power: ≤ 360mW
Shell Material: PA66
Size (mm): 38mm x 90mm x 64mm
