Product Overview

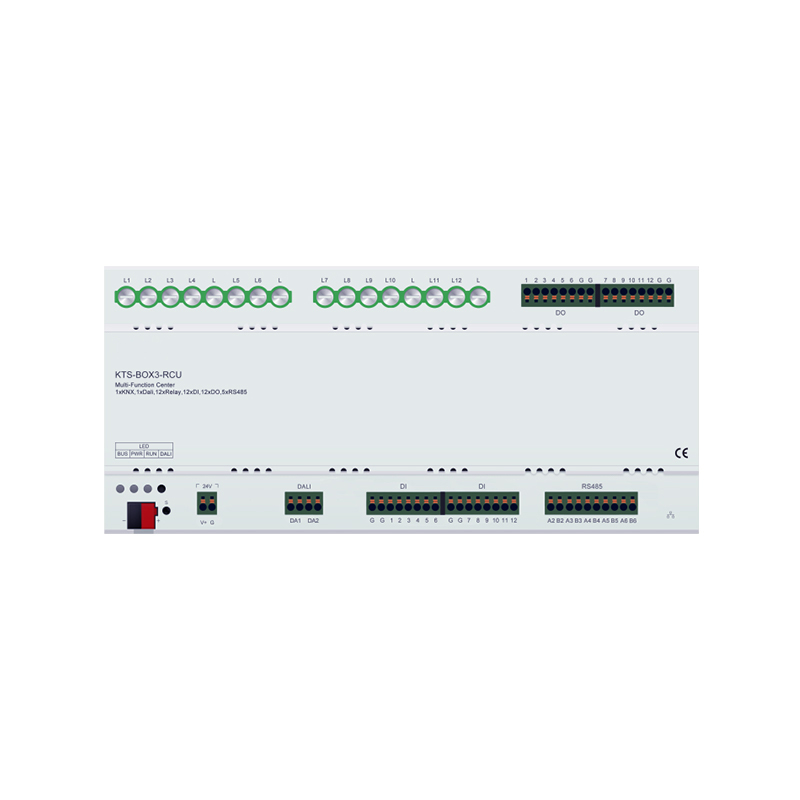

KTS-BOX3-RCU Multi-Functional Hotel RCU is equipped with a  variety of control units (12-channel relay output, DALI dimming, 12-channel DI  (Digital Input) input, 12-channel DO (Digital Output) output, and 5-channel  RS485). It further supports TCP/IP and is applicable to projects such as hotel  guest rooms.

The device adopts DIN-rail mounting, featuring abundant hardware interfaces and  strong computing capability. It supports multiple types of control panels including  RS485, TCP/IP, dry contact, and Zigbee. Combined with Hotel's  dedicated control software, it can be easily adapted to various types of hotels. The debugging process of the KTS-BOX3-RCU Multi-Functional Control Center is  flexible and simple — only the debugging of one model room needs to be  completed, and the settings can be copied in batches to the remaining rooms.

There is no need to consider branch line conditions or group address allocation,  which significantly reduces service costs. The hotel operation logic can be freely  defined by users, or our team can customize the operation logic script for users to  upload independently, without the need to return the device to the factory for  re-flashing firmware.

Product Features

● Standard DIN35mm rail-mounted modular product, featuring  compact structure and powerful functions

● Relay output: Equipped with 12 channels of relays, used for  loads such as fan coils, curtains, and lighting

● DI input: Equipped with 12 channels of passive dry contact  inputs, used for receiving dry contact signals from panels

● DO output: Equipped with 12 channels of 0/12V outputs, used  for passive or low-voltage output

● DALI dimming: Equipped with 1 channel of DALI dimming  output, used for connecting to DALI lighting systems and  supporting 64 DALI addresses

● RS485: Equipped with five independent serial communication  interfaces

● RJ45: Equipped with one RJ45 interface, supporting multiple  network transmission control functions and protocols

● Built-in logic function/timing function
