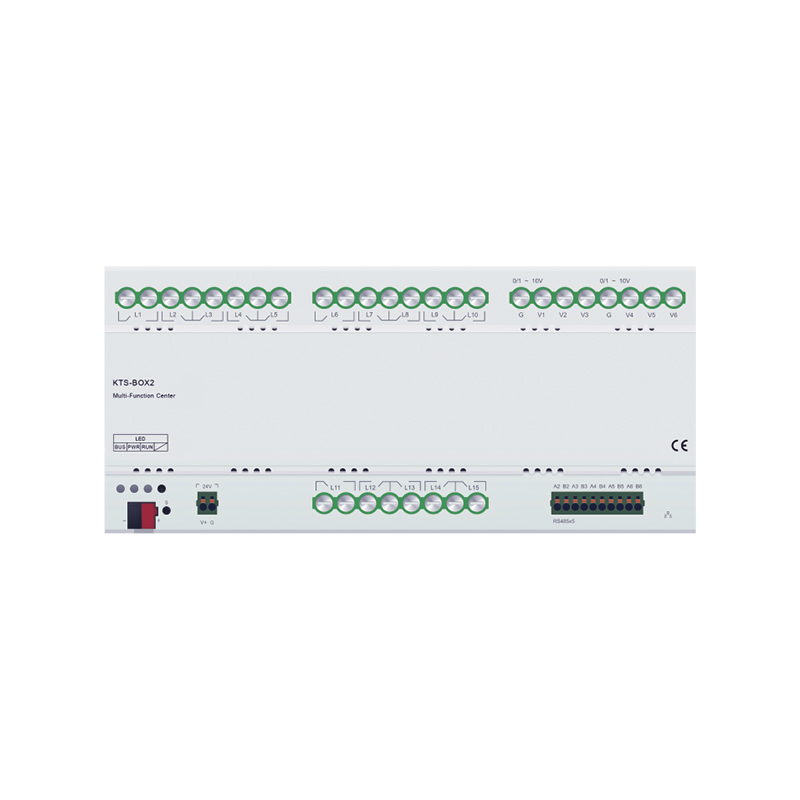

The KTS-BOX2-RCU Multi-Functional Hotel RCU Host integrates the KTS solution with multiple control units including relay outputs, 0-10V dimming, and RS485. It is ideal for hotel guest rooms and small apartments.
The DIN-rail mounted KTS-BOX2-RCU offers abundant hardware interfaces and strong computing capability. It supports RS485, TCP/IP, dry contact, and Zigbee control panels. Combined with hotel management software, it adapts easily to different hotel types.
The debugging process is flexible and simple — only one model room needs to be debugged, and the configuration can be copied in batches to other rooms. There is no need to consider branch line conditions or group address allocation, which greatly reduces service costs. Hotel operation logic can be freely defined by users, or customized logic scripts can be provided for direct upload, without returning the device to the factory for firmware flashing.
DIN35mm rail-mounted modular product: compact structure, powerful functions.
Relay output (3×16A): for heavy loads such as card power supply, breakers, or sockets.
Relay output (12×10A): for lighting and other loads.
Dimming output (6 channels, 0-10V): supports sourcing and sinking current, compatible with all mainstream 0/1-10V ballasts.
RS485: 5 independent serial communication interfaces, dedicated for hotel integration.
RJ45: one RJ45 interface, supporting multiple network transmission functions and protocols.
KNX: one KNX TP interface, can connect to KNX systems or other control systems, or work independently; flexible and expandable.
Built-in logic and timing functions.
Integrated KNX IP Router: with filtering table function.
| Product port | |||
| 16A relay output | 3 | 10A relay output | 12 |
| 0-10V dimming output | 6 | RS485 | 5 |
| RJ45 | 1 | KNX TP | 1 |
| LED indicator light | |||
| BUS: KNX system indicator light, red | POWER: Working indicator light, orange | ||
| RUN: Operating indicator light, green | |||
