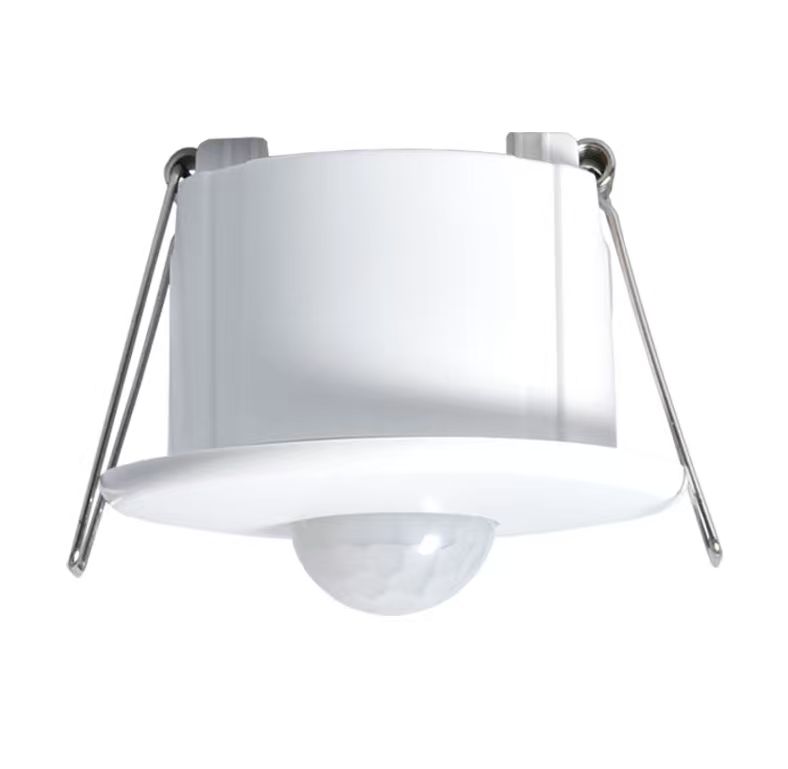

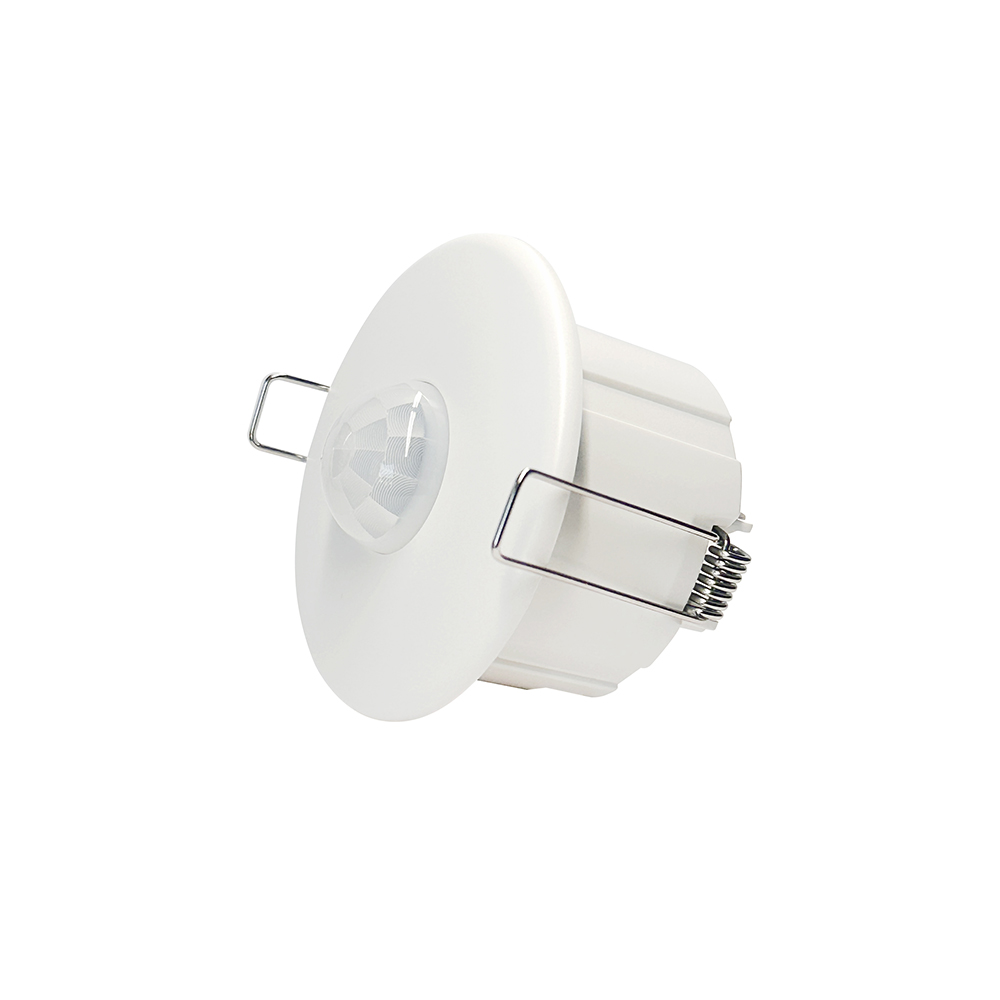

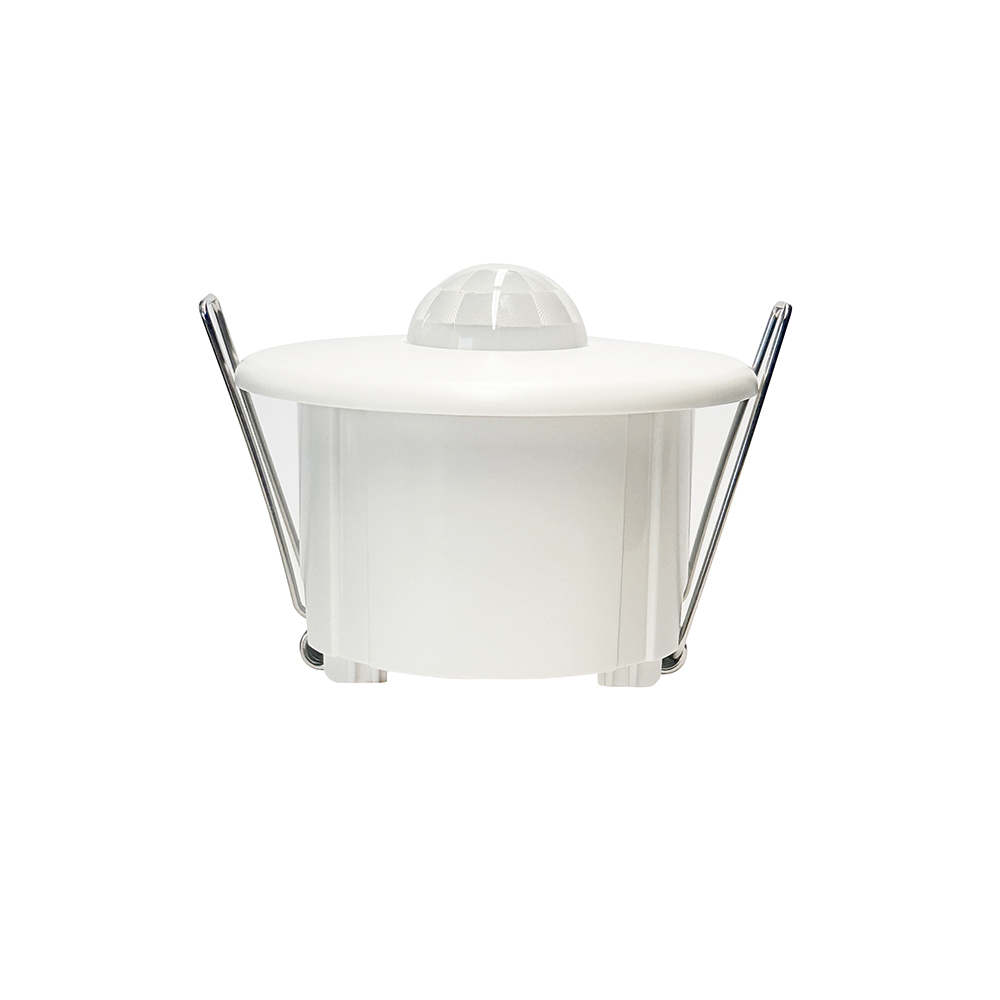

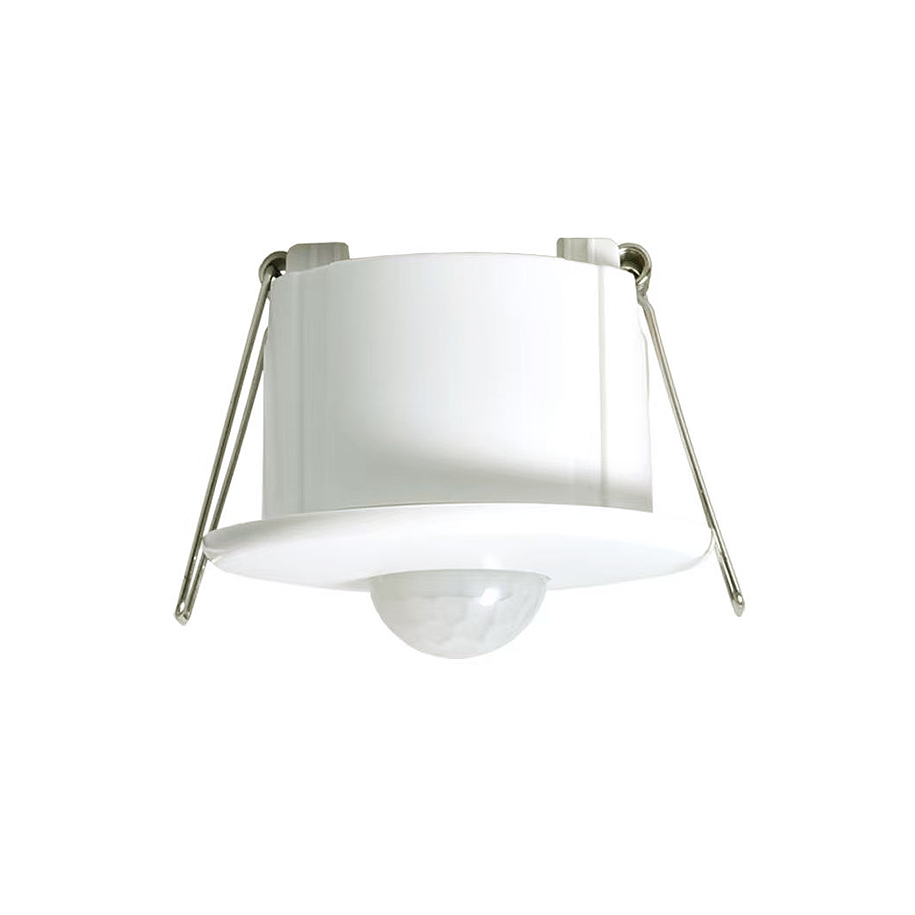

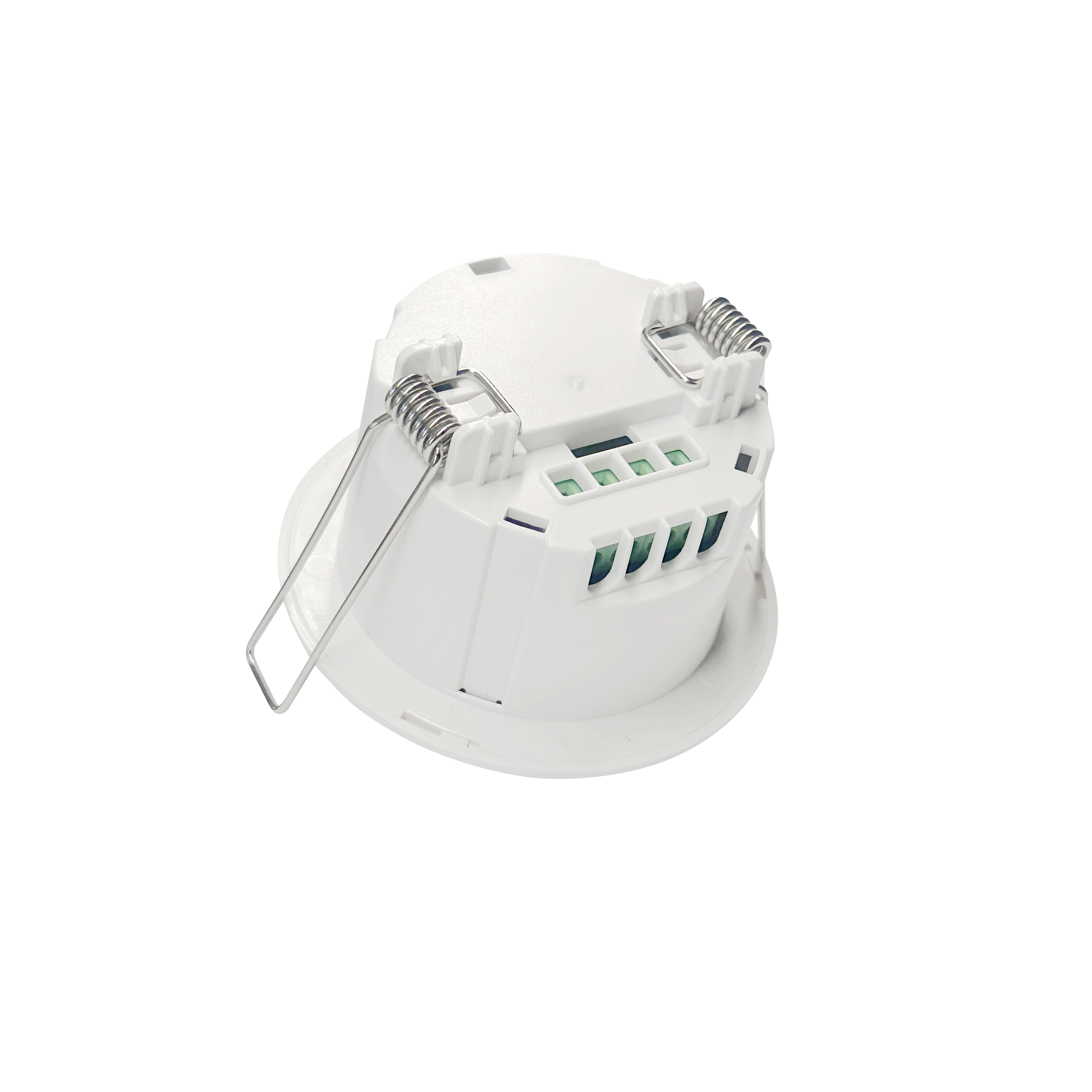

DALI-2 PIR2L-BLE Control Device
Sensor Module for DALI and DALI-2 lighting systems
PIR2L-BLE can work in ‘input device’ or ‘application controller’ mode：
input device：generate event messages that are interpreted and processed by higher-level control units (support IEC62386-103)， higher-level control units (support IEC62386-103) gives direct DALI control commands that are immediately executed by the DALI drivers.
application controller：gives direct DALI control commands that are immediately executed by the DALI drivers.
2 operating modes:
Movement triggered
Movement triggered with Illuminance threshold
Supply via the DALI bus.
Multi-master capable, multiple modules can be installed on one DALI-line, in total up to 64pcs.
The DALI-interface can handle mains voltage, protecting the device in case of wrong wiring.
Standards: IEC62386-101、IEC62386-102、IEC62386-103、IEC62386-303、IEC62386-304.
