Products Category
KNX 10A Multifunction Actuator
KNX 10A Multifunction Actuator
Main Input: 4/6/8/12/16/24 circuits, each circuit 250V AC（50/60Hz)
Model: MX0410; MX0610; MX0810; MX1210; MX1610; MX2410
KNX Bus Voltage: 21-30VDC; KNX Bus Current: ≤20mA
Bus Power: ≤ 360mW; Shell Material: PA66
Size (mm): 72mm x 90mm x 64mm 4 Circuits (MX0410)
145mm x 90mm x 64mm 6/8/12 Circuits (MX0610/MX0810/MX1210)
218mm x 90mm x 64mm 16/24 Circuits (MX1610/MX2410)
KNX 20A Switch Actuator
KNX 20A Switch Actuator
Main Input: 4/6/8/12 circuits, each circuit 250V AC（50/60Hz) 20A
Model: MR0420; MR0620; MR0820; MR1220
KNX Bus Voltage: 21-30VDC ; KNX Bus Current: ≤20mA
Bus Power: ≤ 360mW ; Shell Material: PA66
Size (mm): 72mm x 90mm x 64mm 4 Circuits (MR0420)
145mm x 90mm x 64mm 6/8 Circuits (MR0610/MR0810)
218mm x 90mm x 64mm 12 Circuits (MR1220)

KNX Triac Dimming Actuator
KNX Triac Dimming Actuator
Model: MD040502 (5A); MD021002 (10A); MD011602 (16A)
Main Input: 200~240V AC
Main output: 4/2/1 independent circuit SCR dimming output
KNX Bus Input: 21-30VDC
KNX Bus Current: ≤12mA; Bus Power: ≤ 2.7W
Shell Material: PA66
Size (mm): 220mm x 102mm x 68mm

KNX 0-10 V Dimming Actuator
KNX 0-10 V Dimming Actuator
Model: MD041601; MD061601
Main Input: 200~240V AC; Main Output: 0-10V
0-10V Output: Output of each circuit≤ 40mA
KNX Bus Input: 21-30VDC
KNX Bus Current: ≤12mA; Bus Power: ≤ 2.7W
Shell Material: PA66
Size (mm): 145mm x 90mm x 64mm 4/6 Circuits

KNX Multi Protocol Control Gateway
KNX Multi Protocol Control Gateway
Model: MG0201
Main Input: 12~24 VDC
KNX Bus Input: 21-30VDC
KNX Bus Current: ≤10mA
Bus Power: ≤ 2.3W
Shell Material: PA66
Size (mm): 145mm x 90mm x 64mm

KNX BUS Auxiliary Power Supply
KNX BUS Auxiliary Power Supply
Model: MP6402
Main Input: 100-240VAC; 50/60Hz
KNX Bus Output: 1 circuit with reactor, 21-30VDC
Auxiliary Power Output: 1 without reactor, 30VDC
Nominal Output Current: I₁+I₂≤640mA, short circuit protection
Shell Material: PC
Size (mm): 72mm*90mm*64mm

KNX Line Coupler
KNX Line Coupler
Model: MG0601
KNX Bus Input: 21-30VDC
KNX Bus Current: ≤12mA
Bus Power: ≤ 360mW
Shell Material: PA66
Size (mm): 38mm x 90mm x 64mm

KNX IP Router
KNX IP Router
Model: MG0401
KNX Bus Input: 21-30VDC
KNX Bus Current: ≤12mA
Bus Power: ≤ 360mW
Shell Material: PA66
Size (mm): 38mm x 90mm x 64mm

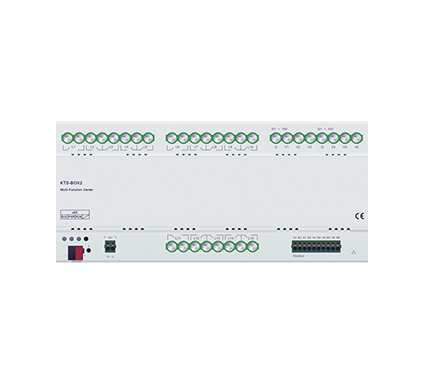

KNX Hotel RCU Host
KNX Hotel RCU Host
Model: KTS-BOX2-RCU
Power Supply: 24VDC / 30VDC
Type of protection: IP20
Operation：0℃~70℃
Storage：-25℃~70℃
Size (mm): 216mm×92.5mm×60mm
Installation method：Rail-mounted installation
