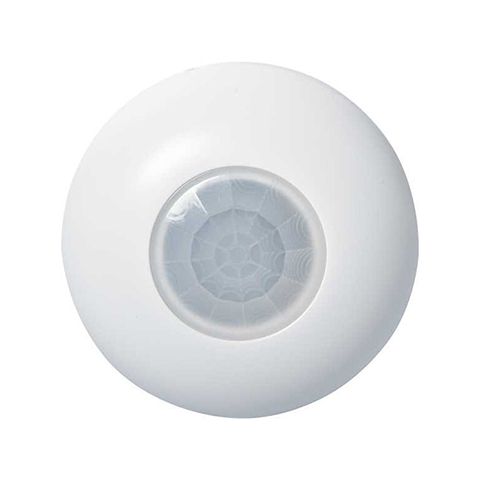

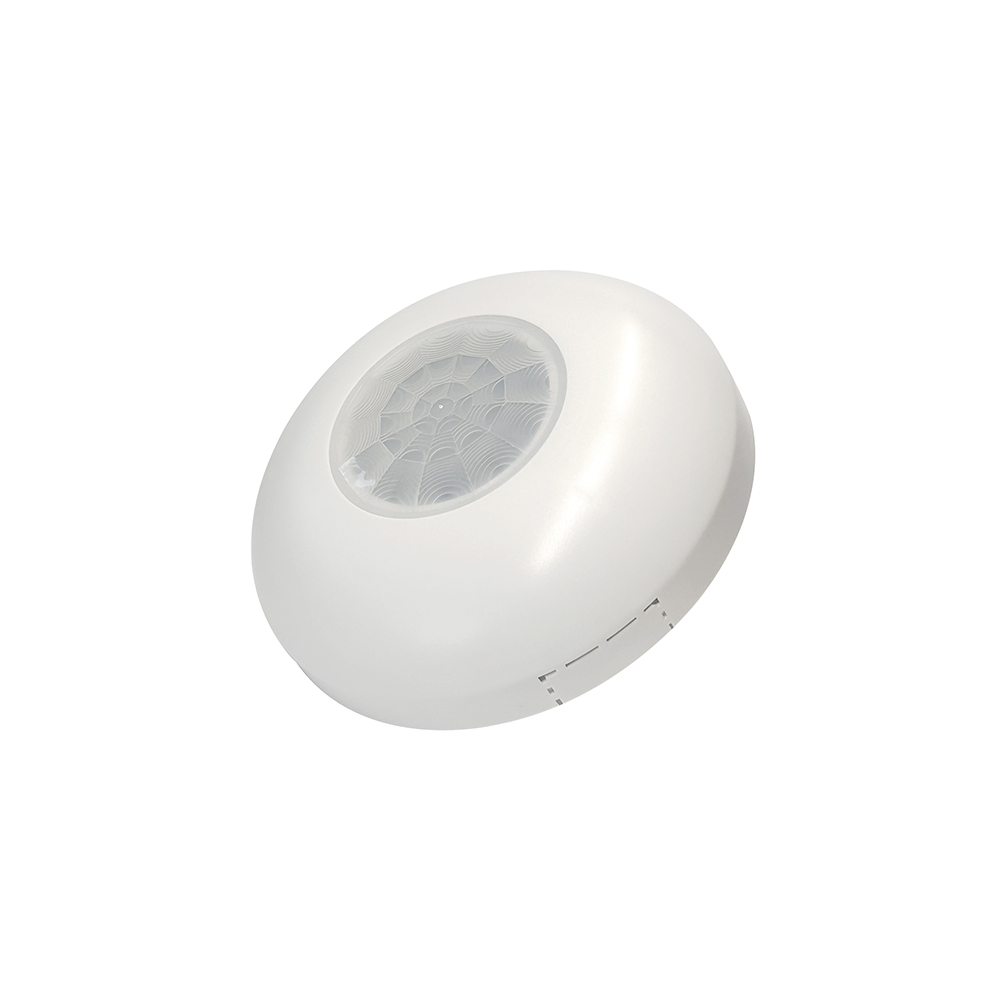

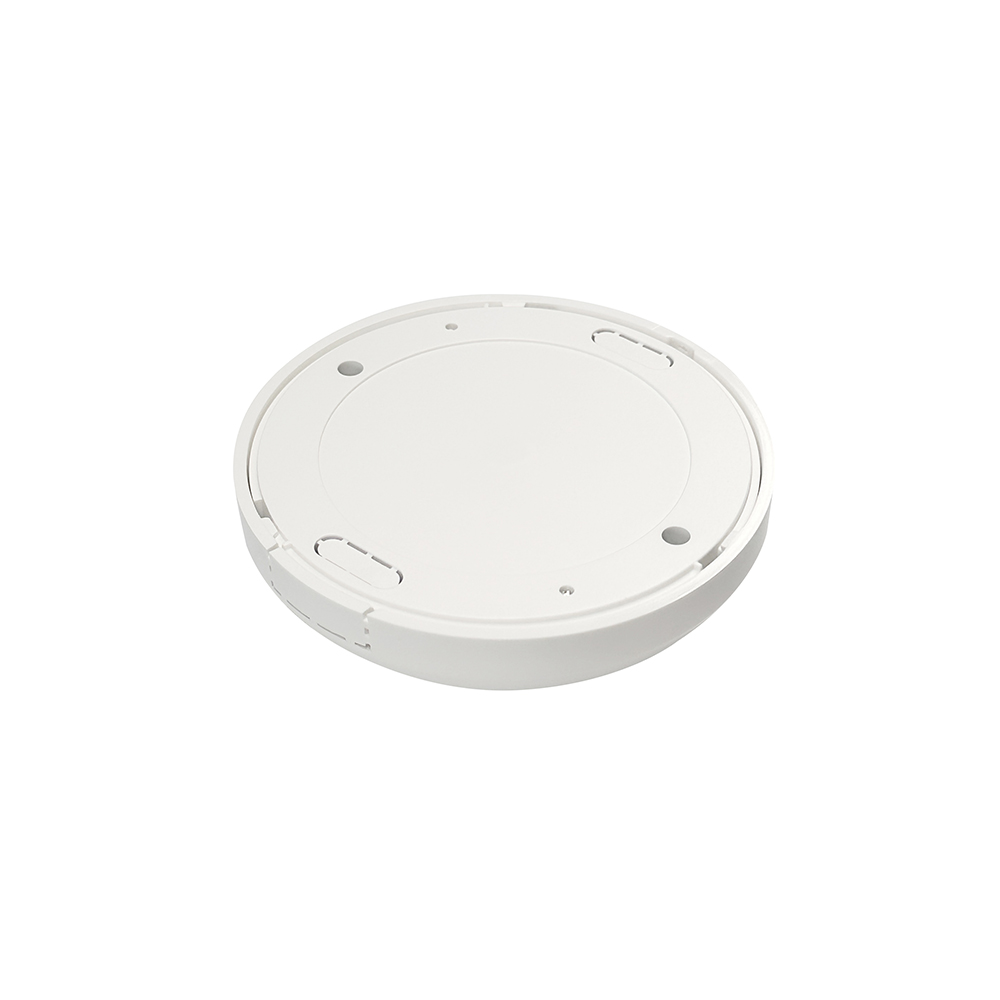

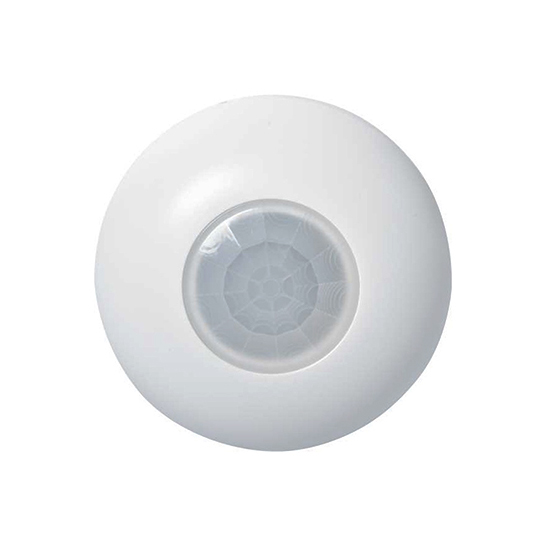

DALI-2 PIR3L Control Device
● Sensor Module for DALI and DALI-2 lighting systems
● PIR3L can work in ‘input device’or ‘application controller’：
input device：generate event messages that are interpreted and processed by higher-level control units (support IEC62386-103)， higher-level control units (support IEC62386-103) gives direct DALI control commands that are immediately executed by the DALI drivers.
application controller：gives direct DALI control commands that are immediately executed by the DALI drivers.
● 2 operating modes:
Movement triggered
Movement triggered with Illuminance threshold
● Supply via the DALI bus.
● Multi-master capable, multiple modules can be installed on one DALI-line, in total up to 64pcs.
● The DALI-interface can handle mains voltage, protecting the device in case of wrong wiring.
● Standards: IEC62386-101、IEC62386-102、IEC62386-103、IEC62386-303、IEC62386-304.
