● It can be used with touch-sensitive buttons/PUSH switches and is compatible with 1 to 4-button panels.
● It enables turning lights on/off, dimming, adjusting color temperature, and activating scenes for power sources within the control range. <br>
● The SWITCH4T has two operating modes：
DALI-2 Standard (DALI-2 Instances):
The DALI controller on the DALI bus complies with IEC 62386-103. First, configure the SWITCH4T using the DALI controller. When a relevant action is triggered on the SWITCH4T, it sends event messages to the DALI controller. The DALI controller parses these event messages and then controls the corresponding power supply accordingly. <br>
DALI-2 Controller (Application Controller):
Directly controls the LED power supply, functioning as the DALI controller.
● It operates by drawing power from the DALI bus, with a power consumption of 2 mA.

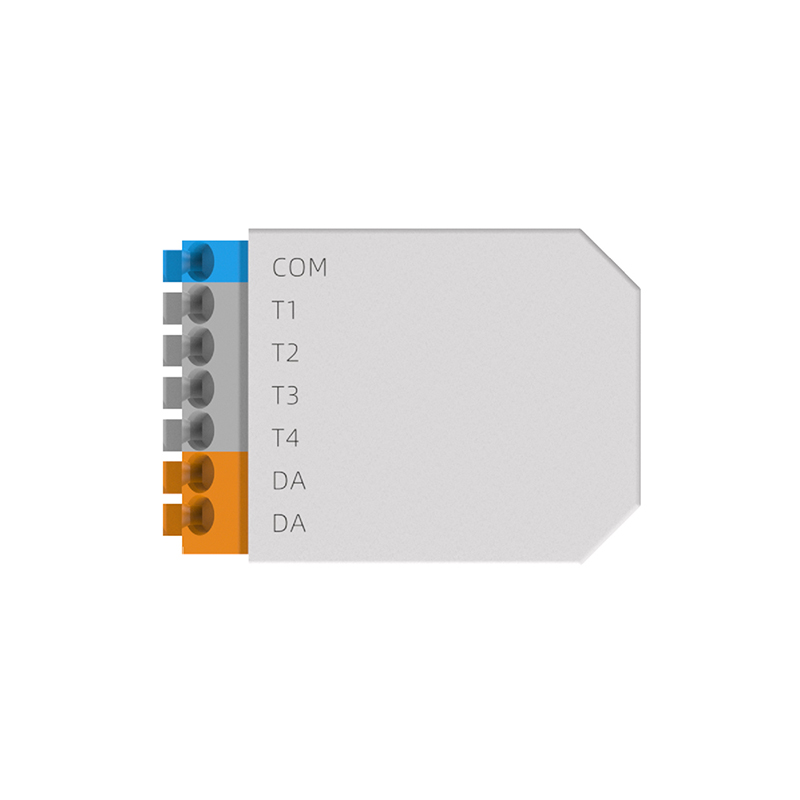

● The DA interface can withstand high voltages up to 300 V.
● Supported protocols: IEC 62386-101, IEC 62386-102, IEC 62386-103, and IEC 62386-301.
