KNX Multi-Function Touch Panel - Premium Control at Your Fingertips

KNX LCD Touch Screen Panel

KNX LCD multi-function touch panel with exquisite aluminum alloy frame could arbitrarily defined lighting, curtains, dimming, RGB dimming, AC, floor heating, fresh air, HAVC, background music, power query, air quality control, timing management, scenes management etc.

Model: TS0401

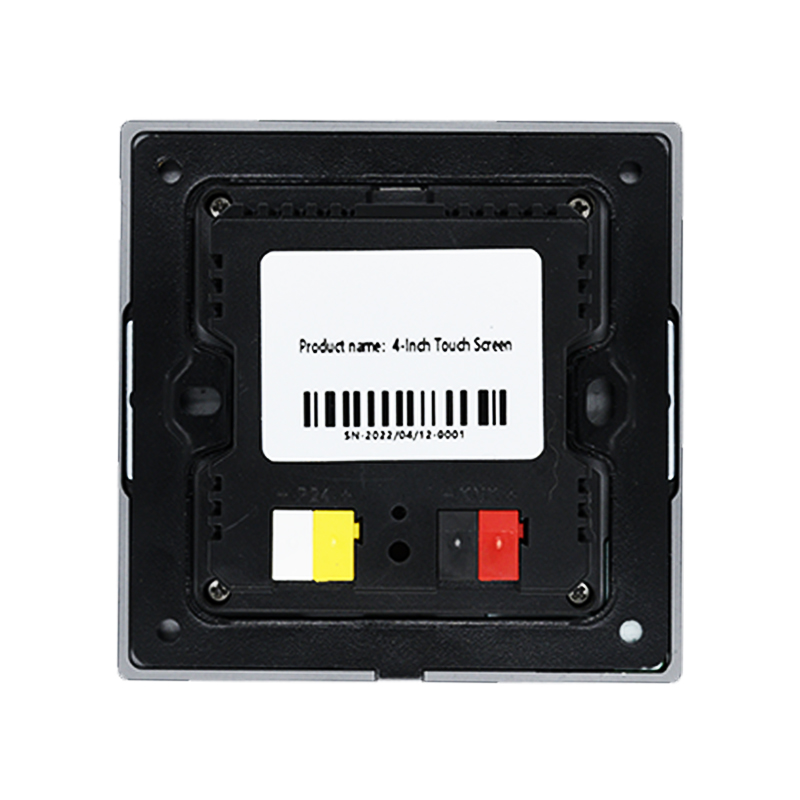

Bus Voltage: 21-30V DC
Auxiliary Power Supply Voltage: 24 V DC
Bus Current: < 12 mA
Auxiliary Current: < 60mA
Bus Power: < 360mW
Dimension (H x W x D): 86X86X29 mm

Leave a message

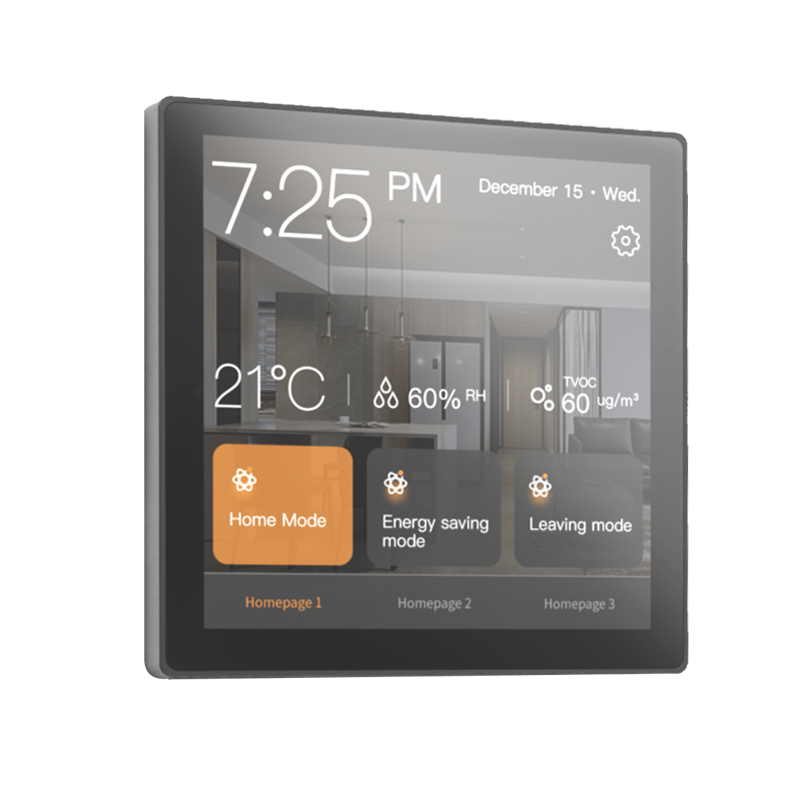

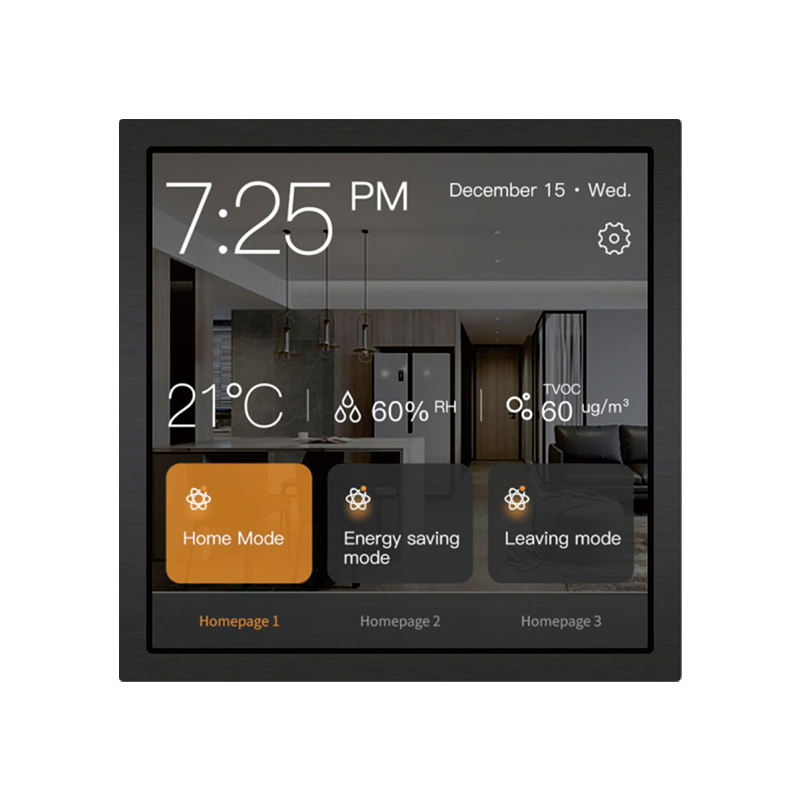

High-Resolution Touch Screen

Equipped with a 4.0-inch color TFT display, resolution of 720x720, and a capacitive touchscreen.

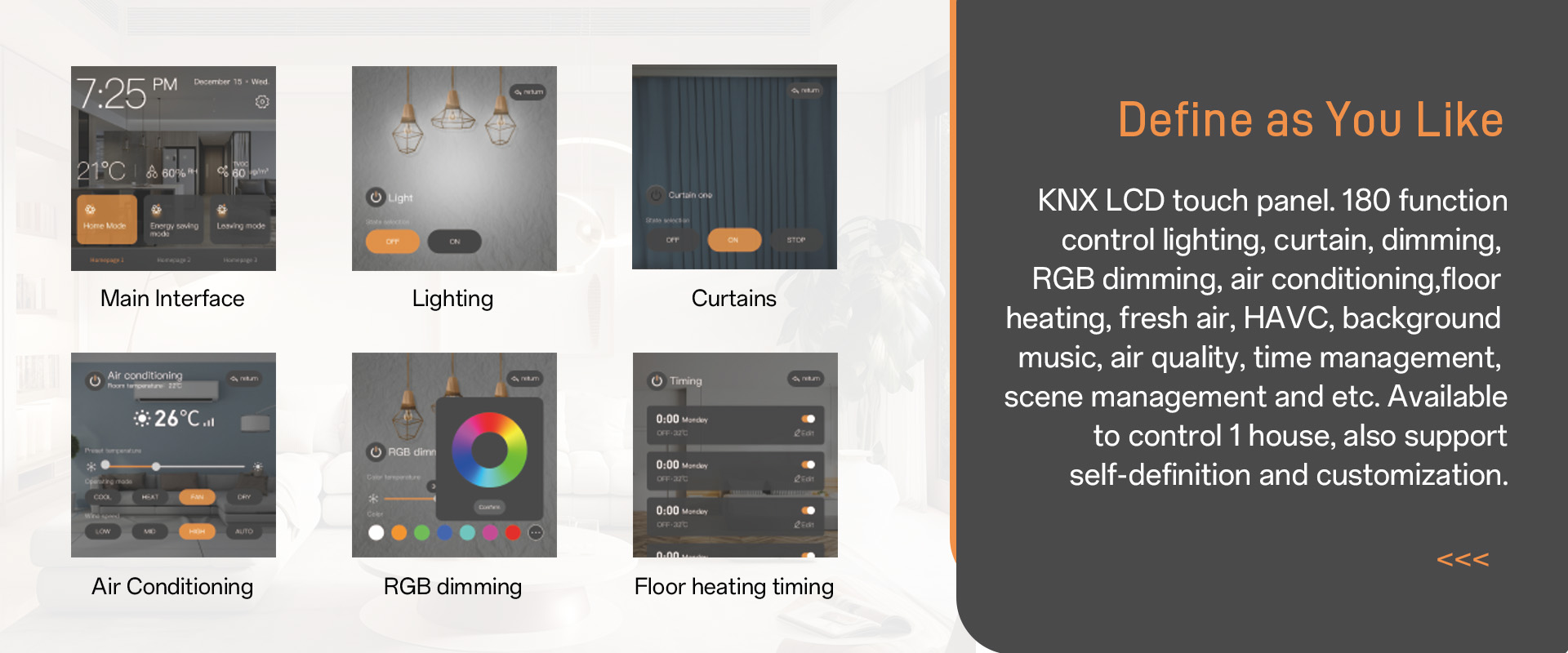

Multi-Function Control

Supports lighting, curtains, dimming, RGB dimming, air conditioning, floor heating, fresh air system, HVAC, background music, air quality control, and more.

Scene Management

Built-in 8 scene modules, flexible to achieve various scene controls, with quick links and navigation functions.

Air Quality and Energy Monitoring

Real-time display of air quality data (such as AQI, PM2.5, PM10, formaldehyde, TVOC, CO2) and energy consumption data (such as current, voltage, power, power factor, electricity).

Product Specifications

KNX LCD multi-function touch panel with exquisite aluminum alloy frame could arbitrarily defined lighting, curtains, dimming, RGB dimming, AC, floor heating, fresh air, HAVC, background music, power query, air quality control, timing management, scenes management etc. knx panel built-in 8 scene modules, flexible to achieve various scene controls, with quick links and navigation functions.

Product Applications

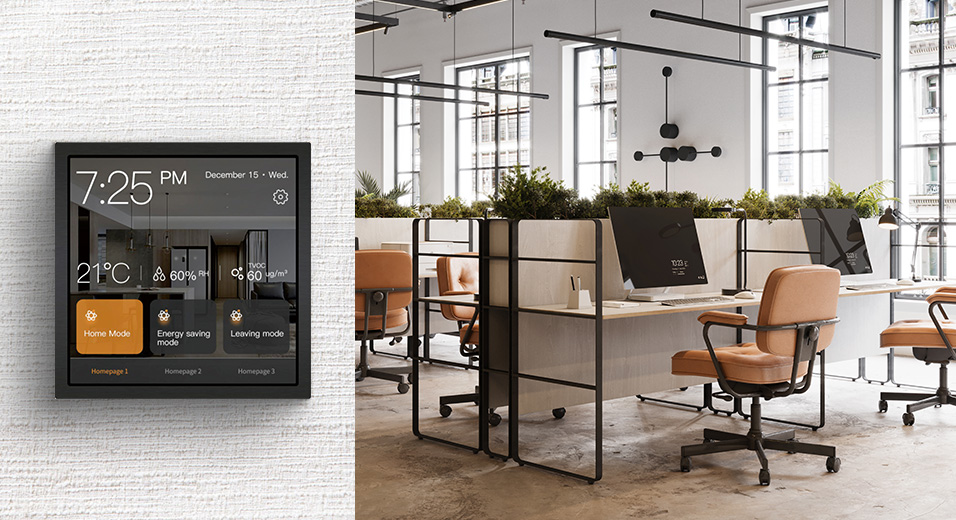

High-End Commercial Spaces

Optimize your premium commercial spaces with our innovative KNX switch solutions. Ideal for high-end offices, retail stores, and showrooms, our switches offer robust functionality and sleek aesthetics. Improve energy management, security, and overall ambiance, ensuring a productive and impressive environment for clients and employees.

High-End Smart Hotel

Elevate your high-end hotel experience with our state-of-the-art KNX switches. Designed for luxury accommodations, our switches provide guests with effortless control over room lighting, temperature, and ambiance settings. Enhance guest satisfaction and operational efficiency with cutting-edge technology and stylish design.

High-End Smart Villa

Transform your luxury villa with our advanced KNX switch products. Offering intuitive control over lighting, climate, and security systems, our switches blend seamlessly with sophisticated interiors, enhancing comfort and convenience. Experience unparalleled elegance and smart living tailored to your exquisite lifestyle.

Product recommendation

Z-RD4 / Z-ERD4 Series KNX Switch

The KNX panel has switch, dimming, casement curtain, roller blind, scene, value and other parameter functions; LED status light can be configured with on, off, on/off, feedback according to value and other functions.

Series: Z-RD4 / Z-ERD4
Power: 24V DC
Switch Material: Full Metal or Metal Frame with Plastic Button
Button Type: 2 / 3 / 4 Gang One Line; 4 / 6 / 8 Gang Two Line
Dimension: 86×86mm
Installation Method: UK Square (Z-RD4) / EU Round (Z-ERD4) Wall Box
Color: Spray White / Spray Black / Spray Grey / Spray Champagne / Brushed Black / Brushed Grey / Brushed Champagne

D8C Series KNX Switch

Z8 Series KNX Switch

The KNX panel has switch, dimming, casement curtain, roller blind, scene, value and other parameter functions; LED status light can be configured with on, off, on/off, feedback according to value and other functions.

Series: Z8
Power: 24V DC
Switch Material: Full Metal
Button Type: 1 / 2 / 3 Gang; 2 Key 4 Gang; 3 Key 6 Gang
Installation Method: UK Square Wall Box
Color: Spray White / Spray Black / Spray Grey / Frosted Silver / Brushed Black / Brushed Grey / Brushed Champagne

D8 Full Screen Touch Thermostat

The KNX Full Screen Touch Thermostat can control air conditioning, floor heating and fresh air.

Series: D8
Power: 24V DC
Material: Acrylic
Button Type: Touch Panel
Dimension: 86×86mm
Installation Method: UK Square / EU Round Wall Box
Color: Black
